Standard Head Expanders

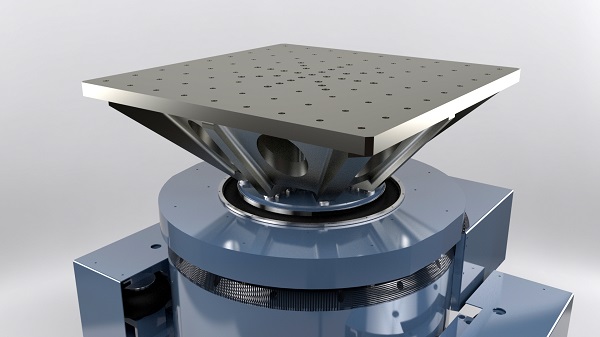

Model HE16-3636-10 providing a 36" square mounting surface on an R16 shaker

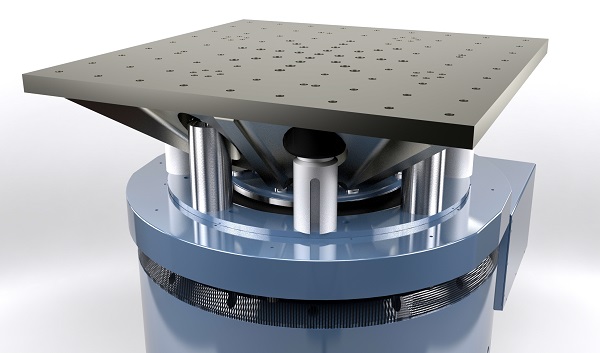

Head Expander with optional guidance and additional load support
These light-weight magnesium head expanders provide reliable and effective solutions for any large, broadband package testing needs.
- Round, square, rectangular and octagon available
- Usable to 2,000 Hz
- Adapts easily for use with thermal chambers
- Increases shaker productivity
- High resonant frequencies available, depending on size
- Cost-effective
- Various insert mounting hole patterns available
- Guidance Bearings and Extra Load Support available for H560B-16, R16, K170-16 and T2000 Shakers.
Download Head Expanders Bulletin
| Standard Head Expanders (custom sizes available) |
| Model |
Expander Size |
Armature Size |
Weight |
Resonant Freq. |
| |
inches (mm) |
inches (mm) dia. |
lbs (kg) |
Hz |
| HE12-2424-8 |
24 x 24 x 8 (610 x 610 x 203) |
12 (305) |
110 (50) |
1400 |
| HE16-2424-6.5* |
24 x 24 x 6.5 (610 x 610 x 165) |
16 (406) |
100 (45) |
1500 |
| HE16-2828-6.5* |
28 x 28 x 6.5 (711 x 711 x 165) |
16 (406) |
160 (64) |
1100 |
| HE16-3232-10* |
32 x 32x 10 (813 x 813 x 254) |
16 (406) |
252 (115) |
1050 |
| HE16-3636-10* |
36 x 36 x 10 (914 x 914 x 254) |
16 (406) |
282 (128) |
900 |
| HE16-4040-12* |
40 x 40 x 12 (1016 x 1016 x 305) |
16 (406) |
410 (187) |
720 |
| HE16-4444-12* |
44 x 44 x 12 (1118 x 1118 x 305) |
16 (406) |
440 (200) |
625 |
| HE16-4848-12* |
48 x 48 x 12 (1219 x 1219 x 305) |
16 (406) |
490 (223) |
530 |
| HE24-3232-7 |
32 x 32 x 7 (813 x 813 x 178) |
24 (610) |
214 (97) |
900 |
| HE24-3636-7 |
36 x 36 x 7 (914 x 914 x 178) |
24 (610) |
241 (110) |
740 |
| HE24-4040-9.5 |
40 x 40 x 9.5 (1016 x 1016 x 241) |
24 (610) |
360 (164) |
650 |
| HE24-4444-9.5 |
44 x 44 x 9.5 (1118 x 1118 x 241) |
24 (610) |
405 (184) |
550 |
| HE24-4848-9.5 |
48 x 48 x 9.5 (1219 x 1219 x 241) |
24 (610) |
452 (205) |
480 |
*Guidance Bearings and Extra Load Support available
|
