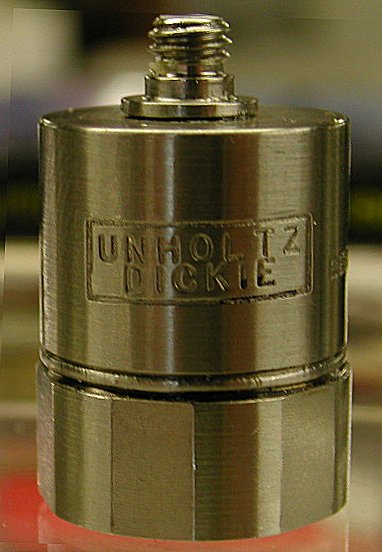

Model 8B6 Piezoelectric Accelerometer

  • Very stable sensitivity
  • Use as reference accelerometer
  • Temp. range -300º F to +500º F
  • Low base and case strain sensitivity
  • Flat charge sensitivity vs frequency
  • Flat charge sensitivity vs temperature
  • Mounted resonant frequency 30 kHz
  • Used as lab and working standard accelerometer with APEX SL-C Transducer Calibration System

The Model 8B6 accelerometer features a flat charge vs. frequency response as well as minimum charge sensitivity variation over a wide range of temperatures. The accelerometer design is a single-ended compression type with a double base construction to minimize base strain sensitivity. The Bismuth Titanate (PZ46) ceramic provides excellent sensitivity stability as well as flat temperature response.

Download Instrumentation Bulletins

Dynamic Performance

  • Charge sensitivity: 8.6 pC/g, ±30% (0.88 pC/m/s2)
  • Accelerometer capacitance: 1,500 pF typical at 160 Hz.
  • Mounted resonant frequency: 30,000 Hz. typical
  • Transverse sensitivity: 3% max at 160 Hz. in any direction, 1% typical
  • Accelerometer resistance: 20 megaohms min at 75º F, 500 megaohms min at 500º F
  • Frequency Max Deviation from Reference: 2Hz: 5%, 10Hz: 2%, 160Hz: REF, 1kHz: 2%, 5kHz: 5%, 7kHz: 7%, 10kHz: 15%
  • Amplitude linearity: within 2% of best straight line (2000 g range)



  • Design Type: Single-ended Compression Mode, mounted on a double base
  • Piezoelectric Ceramic: High Temperature Piezo-Ceramic, Bismuth Titanate (PZ46)
  • Top Output Connector: 10-32 NF Coax socket, mates with Microdot connector
  • Dimensions: 0.72" hex, .90" height plus connector
  • Weight: 1.3 oz (35 gm)
  • Mounting: 10-32 internal thread, .150 inch deep
  • Case: Type 316 stainless steel, Center Post Molybdenum
  • Accessories: 10 ft Microdot low noise cable (3808-10) and 10-32 x 3/8 stud


  • Dynamic Range: 1000 g sinusoidal, 2000 g shock
  • Temperature Range: ±5%, -300ºF to +500ºF (-185ºC to 260ºC), Curie Temp 650ºC
  • Base Strain Sensitivity: Equivalent .05g/µinch/inch strain, typical per ISA RP37.2
  • Seal: True hermetic seal, grade A, with welded and glass-to-metal bonds
  • Thermal Shock Sensitivity for 10°F Step Input: Equivalent 0.2g/°F, typical with 2 Hz. high pass filter.
  • Acoustic Sensitivity: 0.1 g rms @ 100 dB broadband, typical
  • Altitude: Not affected

Calibration of each accelerometer is accomplished by comparison to a NIST traceable reference. Using a UD Model APEX SL-C Digital Calibration Control System, a continuous calibration curve is plotted from 10-10,000 Hz., showing percent deviation of charge sensitivity as compared to the sensitivity measured at the 160 Hz. reference frequency.
