Apex Series Software

An extensive library of APEX Series vibration control software modules is available with an unprecedented number of functions and features to satisfy basic testing needs, as well as advanced applications, data acquisition, and specialized custom testing.

Test Library Specifications & Information

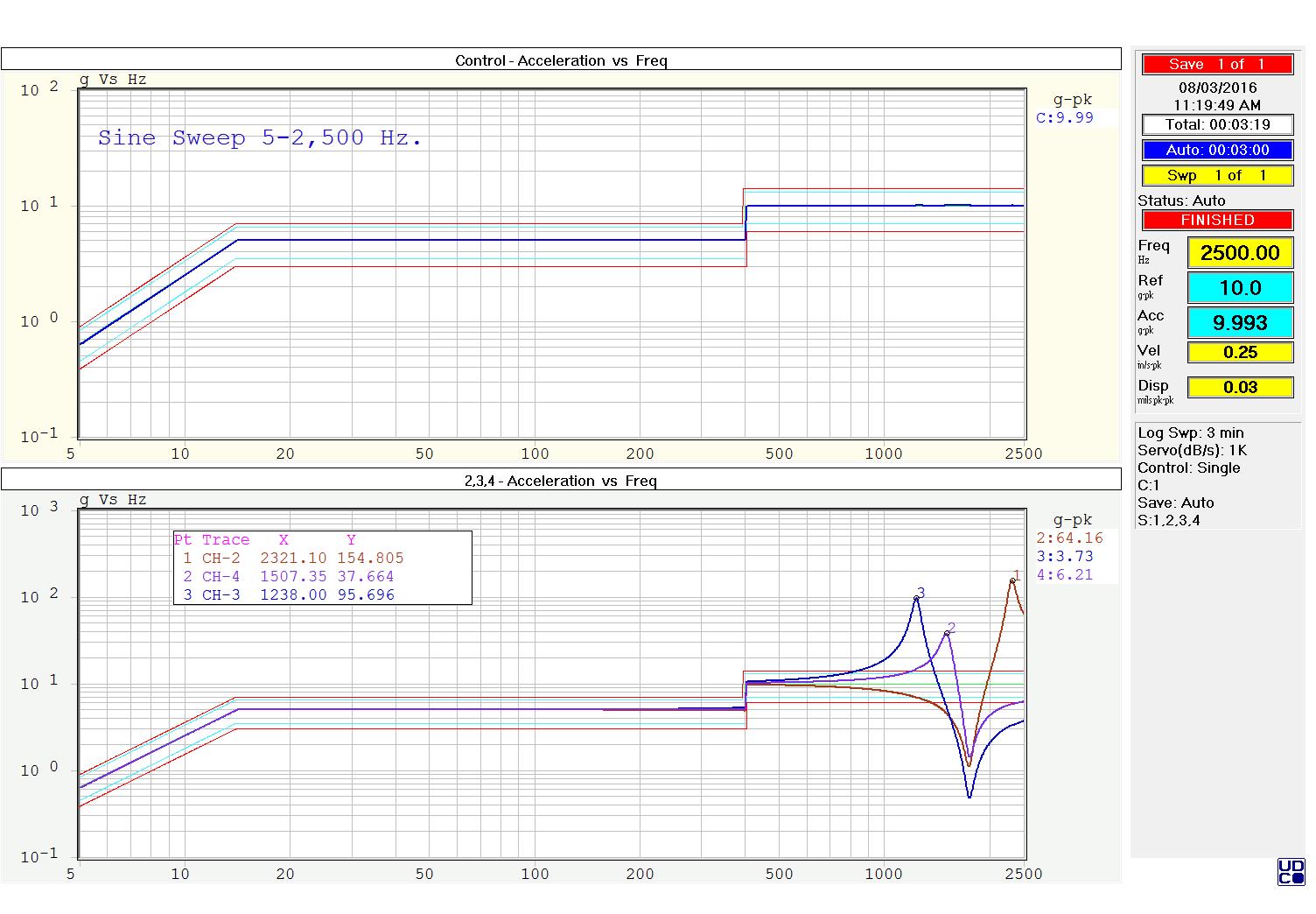

Sine Control Specifications

  • Digital Tracking Filter for Each Channel
  • 2-5,000 Hz (10 kHz Optional) Frequency Range
  • Log/Linear Sweep, Selectable Servo Speeds
  • Constant Accel, Vel, Displ, (or sloped) Segments
  • Sweep Time of 15 sec to 320 minutes
  • Control Types include Single, Average, Extremal
  • Channel Limiting with Individual Segments
  • Individual Channel Aborts Limits
  • C.O.L.A. Output with Adjustable Amplitude and Frequency Trim
  • Manual Hold/Sweep, Reverse, Set Frequency & Amplitude
  • Discrete Freq Test (100 Frequency, Amplitude, & Duration)
  • 2000 Displayable Frequency Points
  • Amplitude, Phase, Ratio Spectra Displays
  • Continuous Update of Instantaneous Accel, Vel and Displ Control Values
  • Automatic Search / Listing of Resonances including Ratio, Phase and Q-Value
  • Reference Alarm and Abort Limit
  • NEW! DC Voltmeter (up to 7 inputs) now available
  • Channel Weighting for Average Control
  • Maximum Drive Abort

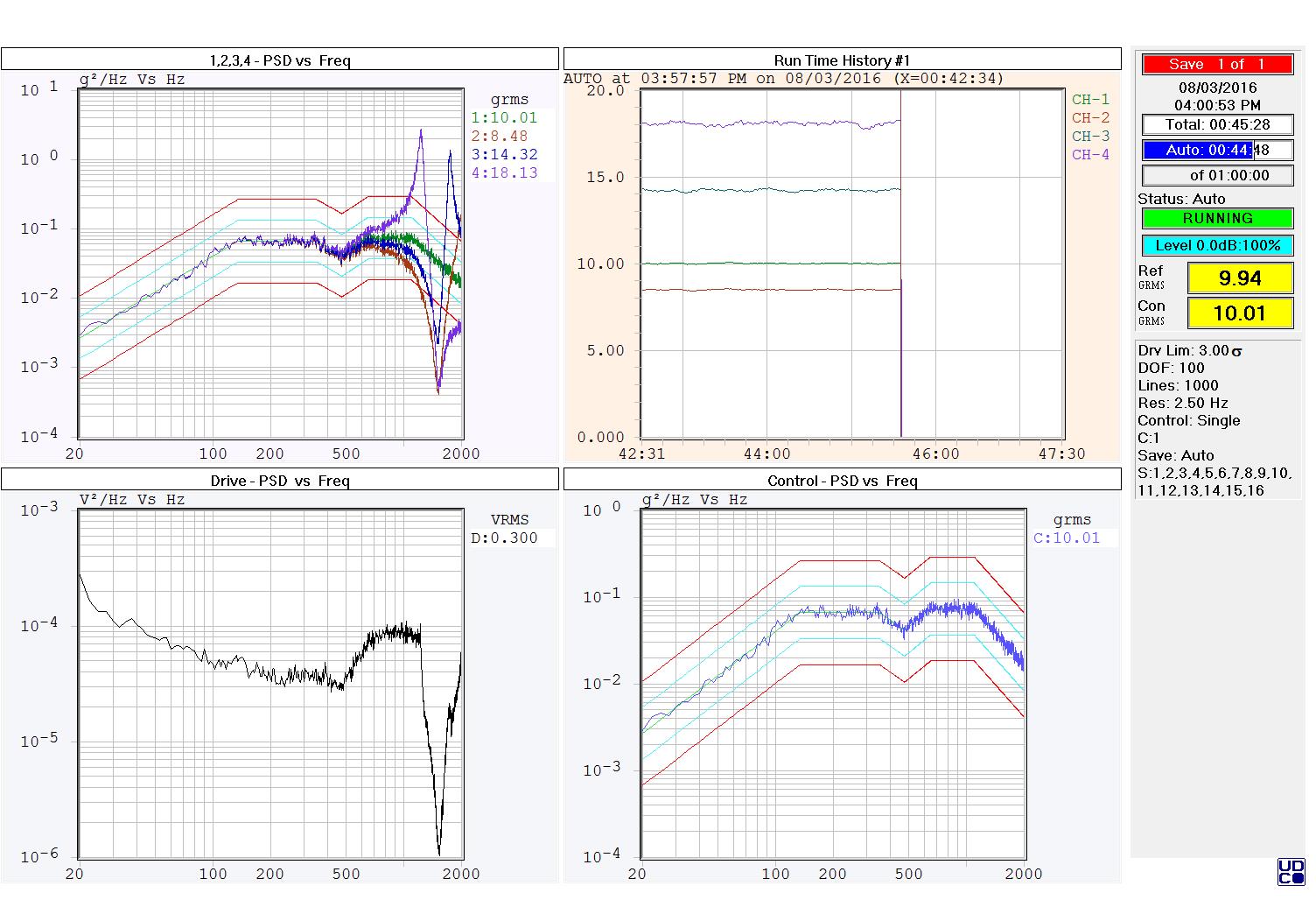

Random Control Specifications

  • 250, 500, 1000, 1250, 2000, 2500, 3000, 4000, 5000 Hz Bandwidths (10 kHz Optional)
  • 125, 250, 500, 1000, 2000, 4000 Lines (0.125 - 20 Hz Resolution)
  • 1024 Breakpoints (Freq/Ampl or Slope)
  • Import ASCII PSD for Reference
  • Import Recorded Time Data to create PSD Reference
  • Control Types include Single, Average, Extremal
  • Non-Gaussian Control Option for greater occurrence of amplitude peaks and higher Kurtosis values
  • Channel Notch/Limiting with up to 256 Breakpoints for Each Channel
  • DOF Selectable 25 to 1000
  • Individual Channel RMS Abort Limits
  • Manual Adjustment of Level
  • Level Scheduling & Looping
  • Instantaneous Level Changes
  • Selectable Sigma Limiting (2.0 - 5.0, None)
  • Automatic Search, Listing and Labeling of Resonances
  • Fast Loop Time (100 msec at 10 Hz res)
  • Use Stored Drive for Quick Starting
  • Reference Alarm & Abort Limits
  • DC Voltmeter (up to 7 inputs) now available
  • Channel Weighting for Average Control
  • Max Drive Abort

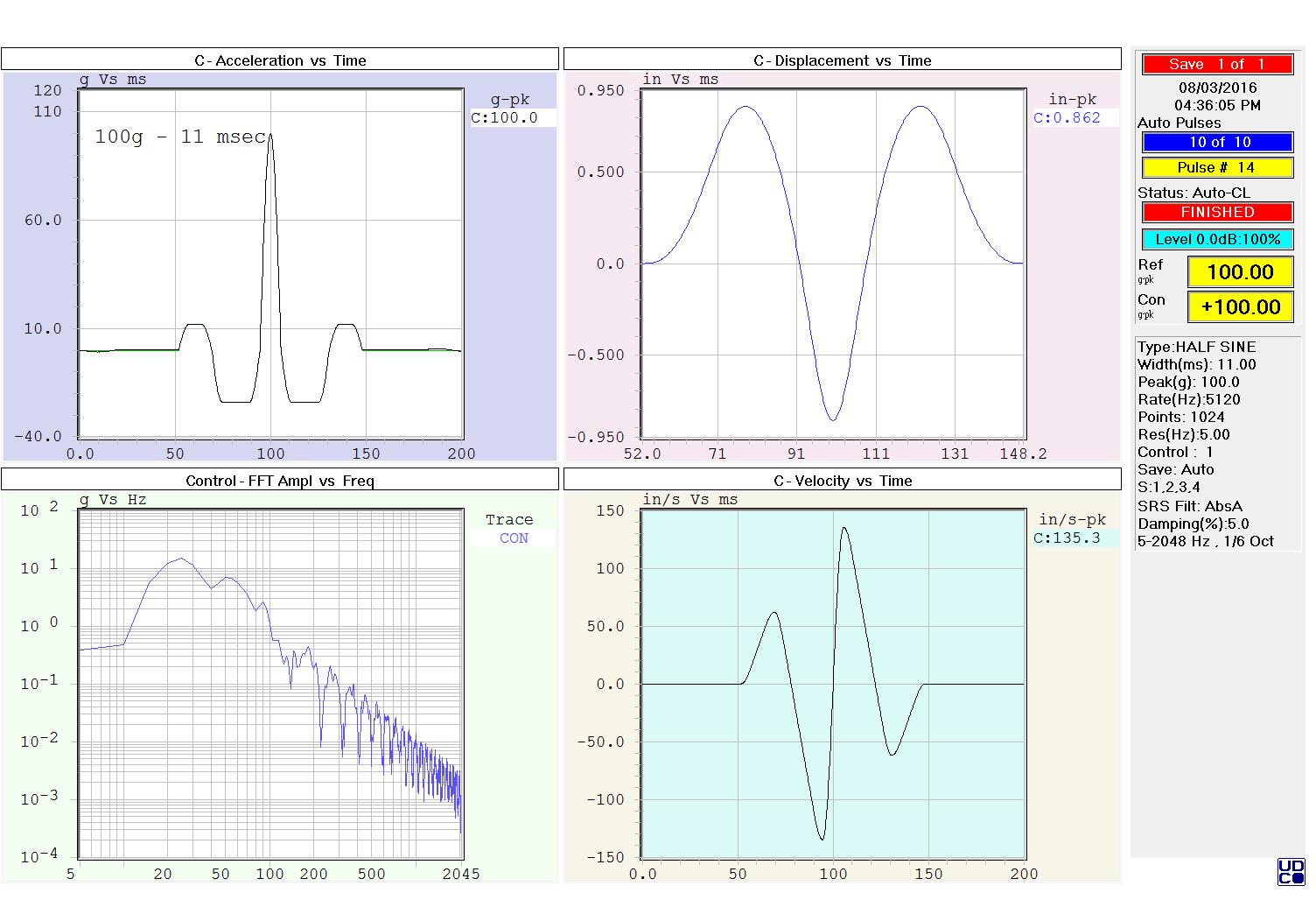

Shock Control Specifications

  • Half-sine, Sawtooth, Trapezoid, Triangle and Haversine Waveforms
  • Pulse Width 0.2 msec to 6 seconds
  • Sample Rate 1.024 to 51.2 kHz
  • Sample Points up to 16,384 (0.13 - 100 Hz Resolution)
  • Control Frequency 20 to 40% of Sampling Rate
  • Level Schedule Including Amplitude, Polarity, Delay, Open/Closed Loop, Num. of Pulses, and Looping
  • Impact Pulses (Haversine and Halfsine) Defined by Velocity Change & Pulse Duration, pre & post Coast Time (optional)
  • Import ASCII Reference Time Waveforms (up to 65,636 points) for Real-World Crash, Bump, Drop Testing, etc. (Extensive processing includes rescale, position, truncate, low & high pass filter, coast period)
  • Compensation Pulses Optimized for both Displacement and Velocity
  • Display of Acceleration, Velocity, Displacement Time Waveforms; FFT and Ratio Spectra
  • Sync Pulse Output (for external triggers)
  • Use Stored Drive for Quick Starting
  • Max Drive Abort

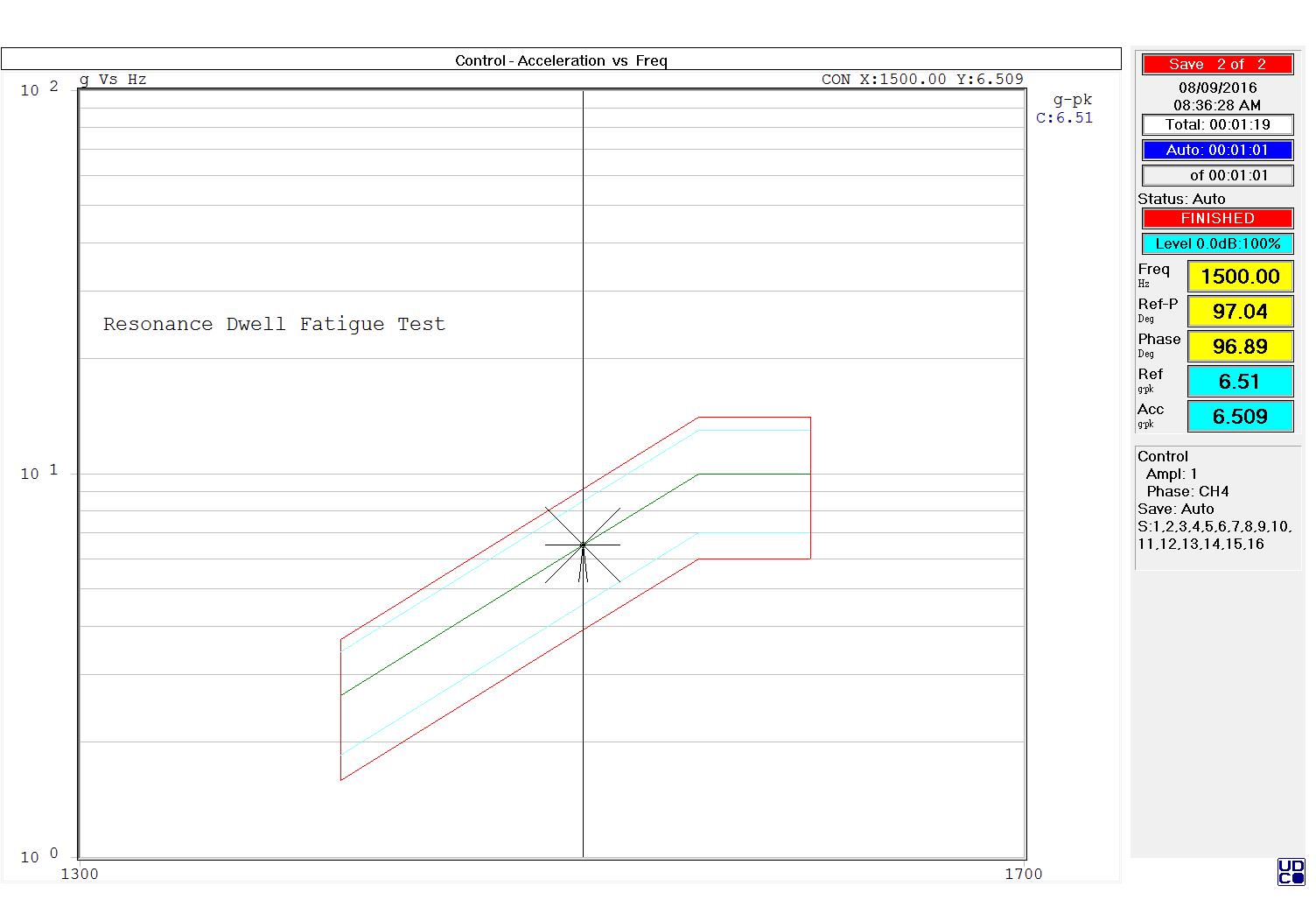

Resonance Dwell Control Specifications

  • Locate, Lock-on and Track Resonance by Phase Lock
  • Amplitude and Phase Control Channel Independently Selectable
  • Amplitude Reference Selectable for Acceleration, Velocity, Displacement or multi-segment
  • Phase Reference Selectable as Absolute or Difference Between two Channels
  • Phase Amplitude +180 to -180 Degrees
  • Duration Selectable for Time or Cycles
  • Upper/Lower Abort Limits for Freq & Amplitude
  • Dwell Log Table Periodically Updated During Test Including Frequency, Amplitude, Phase and Time
  • Manual Controls to Modify Amplitude and Phase
  • Level Scheduling & Looping

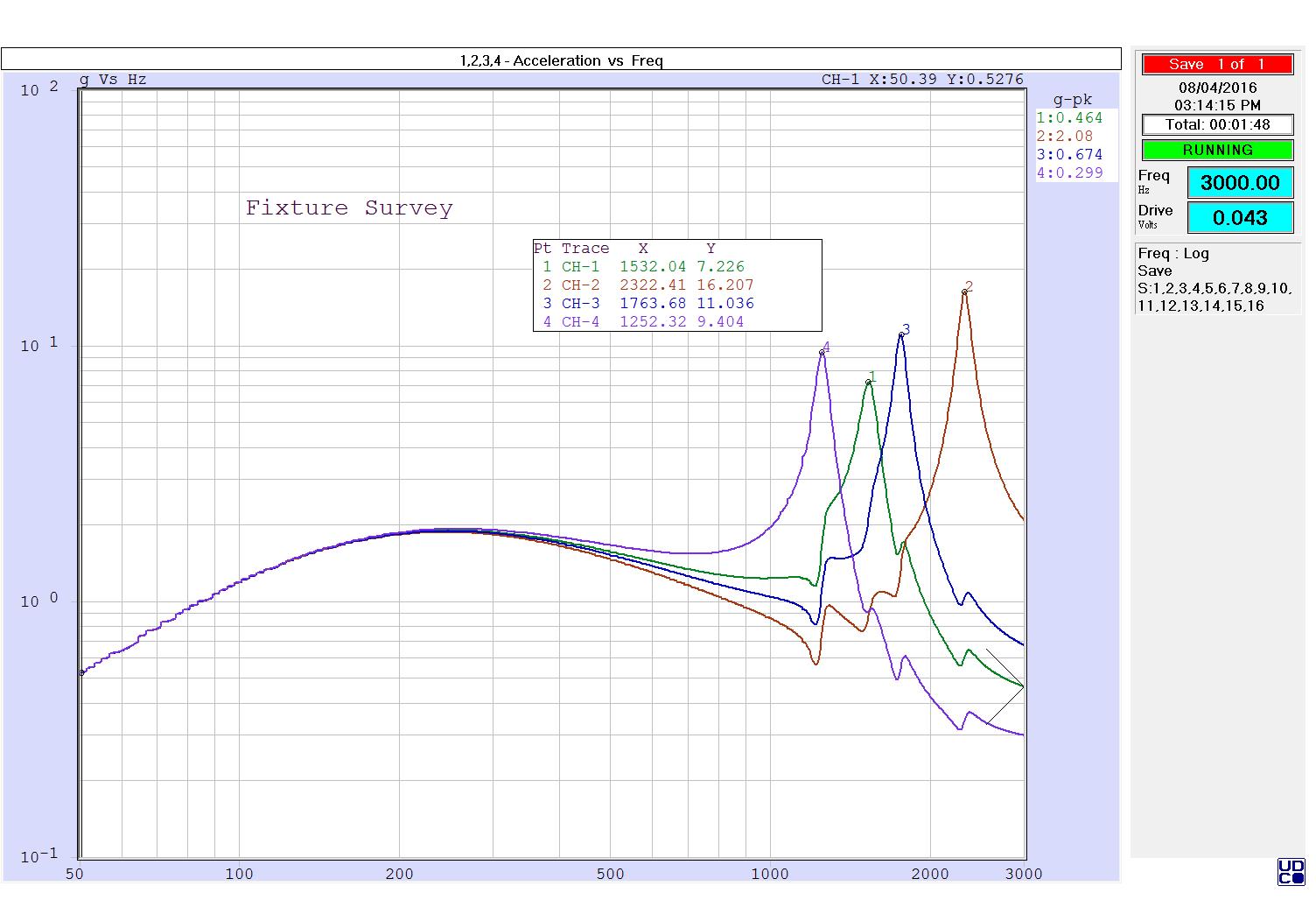

SMART Tool Specifications

  • Verify Shaker System Operation, Evaluate Test Specimen/Fixture Dynamics, Troubleshoot System Faults
  • Selectable Sinusoidal Drive Amplitude and Frequency (open loop oscillator)
  • View Input Channel Broadband RMS Amplitudes with Amplitude Bar Graphs
  • Increase/Decrease Frequency and/or Amplitude in Small Steps
  • Wide Frequency Range 2-5,000 Hz (10 kHz option)
  • Selectable Maximum Limits on Acceleration, Velocity, Displacement, and Voltage Output for Safe Operation
  • Amplitude, Phase, Ratio Spectra Displays
  • Acceleration, Velocity, or Displacement Amplitude
  • Internal Signal Clipping Indicator
  • C.O.L.A. Output with Adjustable Frequency and Amplitude Trim

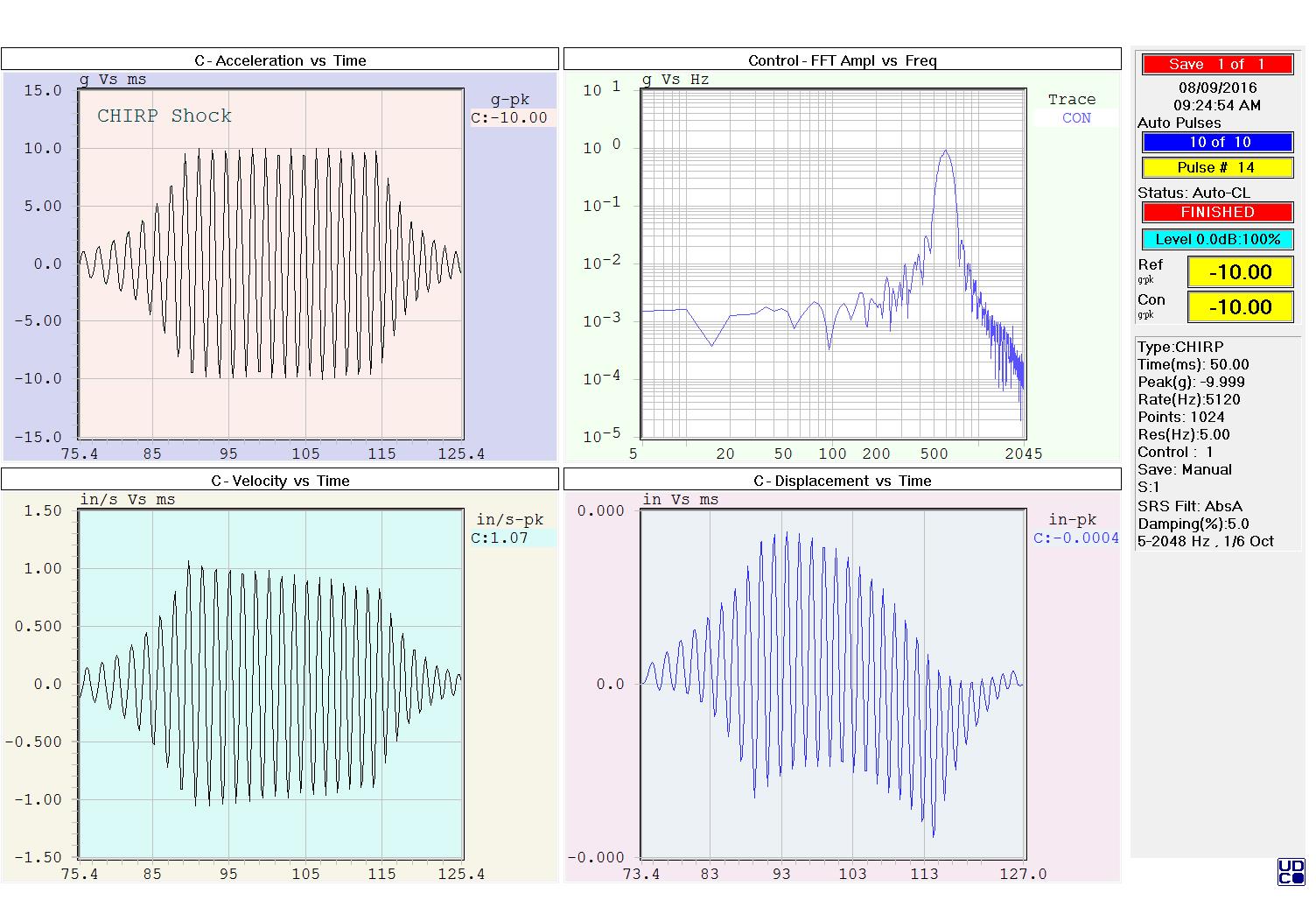

Burst/Chirp Shock Specifications

  • Short Duration of Fixed Frequency Sine Wave (100 msec to 6 seconds)
  • Selectable Amplitude
  • Selectable Num. of Cycles, Ramp Up and Down Cycles
  • Level Schedule includes Amplitude, Num. of Pulses
  • Short Duration Fast Sinusoidal Sweep (100 msec to 6 seconds)
  • Selectable Frequency Range
  • Selectable Sweep Rate
  • Shaped Envelope (32 Frequency/Amplitude Pairs)
  • Level Schedule Includes Amplitude, Num. of Pulses

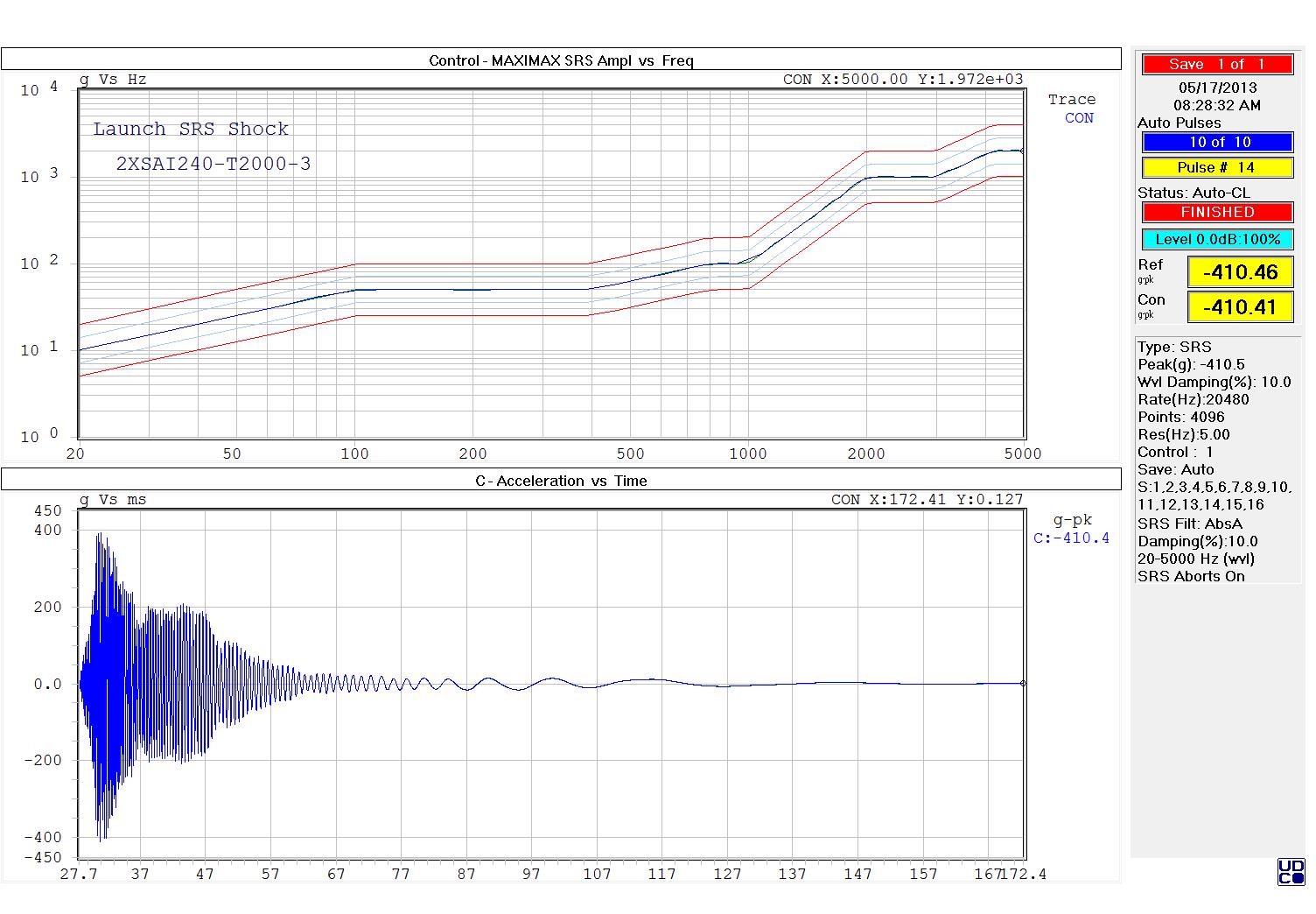

SRS Shock Specifications

  • Up to 512 SRS Breakpoints (frequency / amplitude points or slope)
  • Automatic Iterative Generation of Wavelets, including Frequencies, Polarity, Number of Half-cycles, Delay, and Amplitude
  • Edit Mode Provides for Customization of Wavelet Parameters
  • Maximax, Positive or Negative Primary
  • Up to 100 Wavelets
  • 1 Hz (min), 10 kHz (max) SRS Control
  • SRS Frequencies - Wavelet Frequencies or Octave Spacing 1/n (n = 1 to 24)
  • Damping of 0 to 25% (Q = 2 to 50)
  • Display Time Waveforms, FFT, SRS, Ratio Spectra
  • Measurement of Te and TE as defined in Mil-Std 810g
  • Narrow SRS Pulse Selection for Adjusting TE and Te
  • Extended SRS Waveform option available (Damped Sine & Burst Random Waveforms)
  • Individual Channel Aborts

Sine on Random Specifications

  • Includes General Features of Sine and Random Tests
  • Up to 12 Tones on Random (Harmonic or Non-harmonic)
  • Swept or Fixed Tones
  • Digital Tracking Filter for Each Tone
  • Shaped Reference for Each Sweeping Tone (Accel, Vel, Displ, and Sloped Segments)
  • Manual Operation to Increase/Decrease Level and Enable/Disable Selected Tone(s)
  • Random rms and Individual Tone(s), Amplitude(s) and Frequency(s) Continuously Updated
  • Separate Sine and Random Spectrum Display for Valid Test Verification
  • Selectable Combined Sine & Random PSD Display for Response Channels
  • Gunfire Selection of Tone on/off Period
  • Wide Frequency Range to 5,000 Hz
  • Level Scheduling

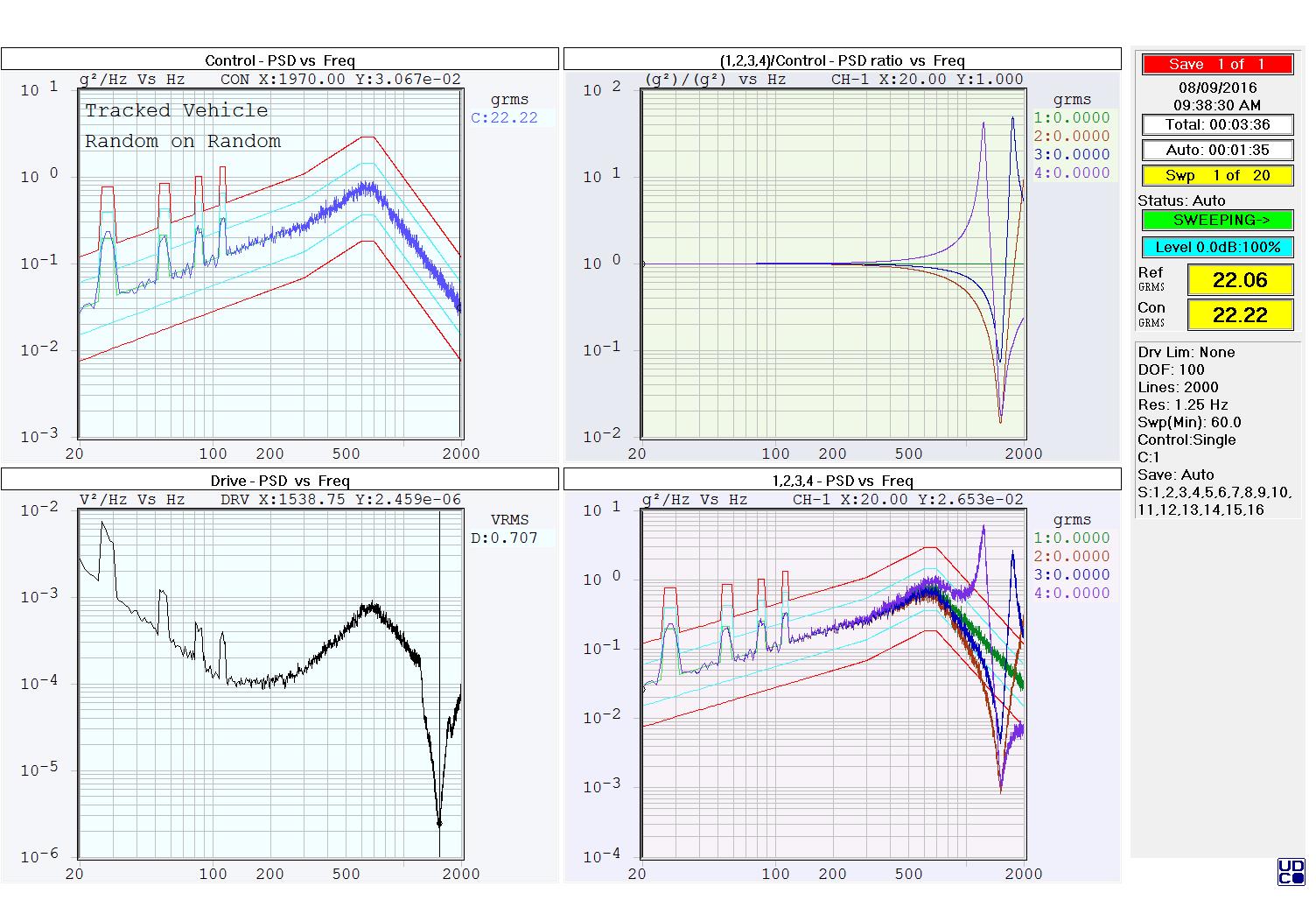

Random on Random Specifications

  • All Features of Random Tests
  • Up to 12 Narrow Sweeping Bands
  • Harmonic or Non-Harmonic Bands
  • Complex Shaped Narrow Bands now Available
  • Automatic Calculation of Harmonic Narrow Bandwidths and Swept Bandwidths
  • Flat or Shaped Base band
  • Minimum 1 Hz Narrow Bandwidth
  • Minimum 2 Hz Sweep Band
  • Sweep Times up to 99 Minutes
  • Level Scheduling
  • DC Voltmeter (up to 7 inputs) optionally available
  • Mil-std 810 testing

Seismic Shock Specifications

  • Conformance to Bellcore (GR-63) Earthquake Waveform
  • Import ASCII Reference Time Waveforms from VERTEQII Zones 1,2,3 and 4. (Extensive processing includes re-scale, position, truncate, low & high pass filter)
  • Edit Mode Provides for Customization of Time Waveform Parameters
  • Automatic Display in Setup Mode of Maximum Accel, Vel, and Displ.
  • Maximax, Positive or Negative Primary
  • Up to 48 Second Time Waveform
  • Resolution < 0.10 Hz.
  • Display of Acceleration, Velocity, Displacement Time Waveforms; FFT and SRS During Auto Test Run
  • Manual and Auto Level Schedule Including Amplitude, Polarity, Delay, Open/Closed Loop, # of Pulses, and Looping

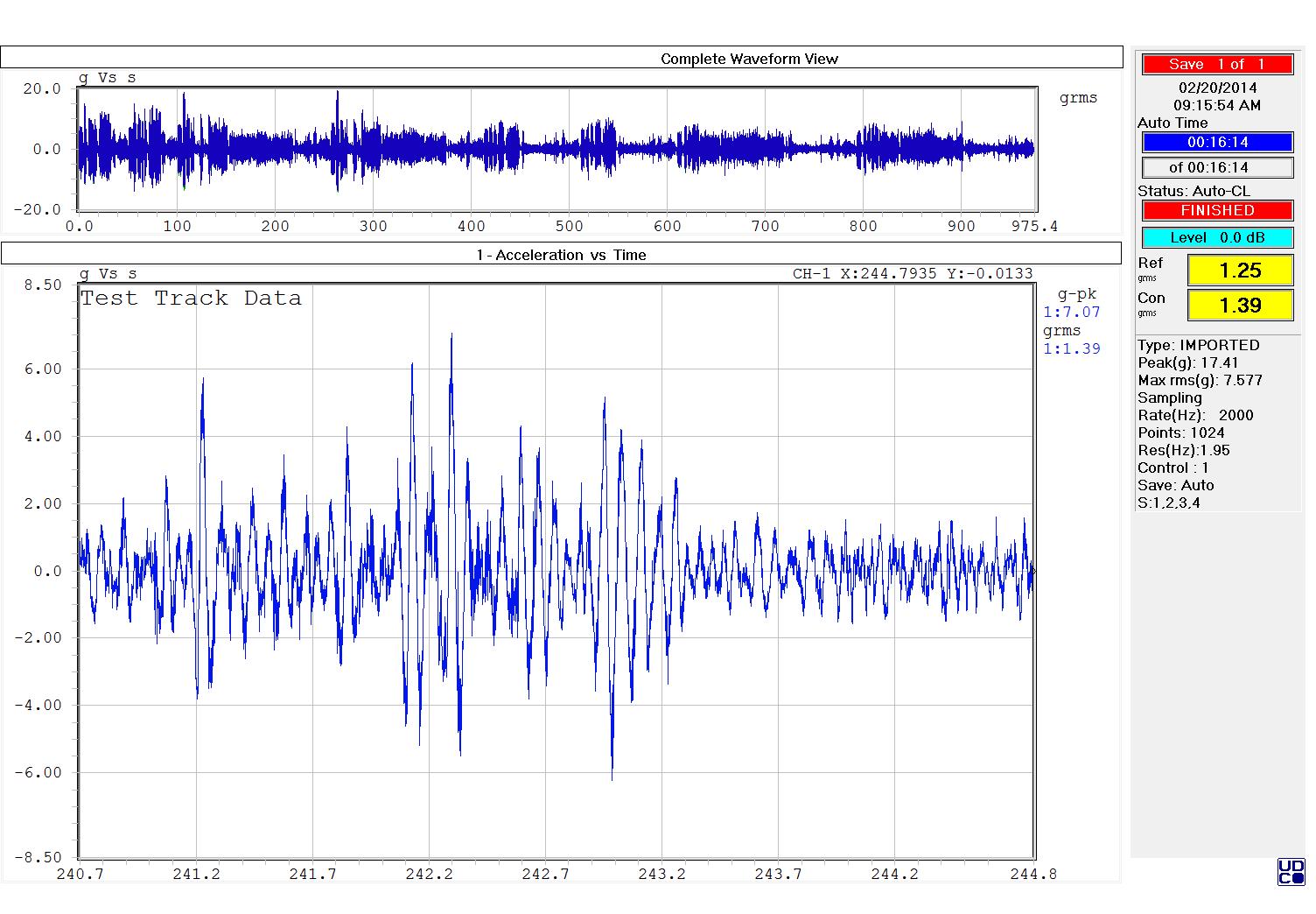

TRAC Specifications

  • Time Domain Control (Replicate Time Signal)
  • Closed Loop Real Time Control with Continuously Updated Transfer Function
  • Long Duration Reference (60+ Minutes at 1.024KHz sampling)
  • Utilize DATAcq Saved Data or Other User Acquired Field Data (ASCII File) As Reference
  • Looping and Cycling of All or Part of Waveform for Thousands of Hours of Testing
  • Sequences of Multiple Unique Reference Waveforms
  • Manual Selection of Level and Time Segment(s)
  • Display Full Time Waveform & Zoom (1/8 - 4X Frame Time)
  • FFT Analysis of Zoomed Range
  • DC Voltmeter (up to 7 inputs) optionally available

Export Data Utility

The export data utility provides a simple method to convert the saved graphical data into other convenient formats (JPEG, TIFF, GIF, or PNG) for integration into word processing documents or other Windows applications. The data can also be exported into tabular format (ASCII, SMS Modal, UFF) for further processing and manipulation by other Windows applications and for simple tabular presentations. An Auto-Export feature is available to allow for automatic ASCII file generation upon completion of the test.

Word Report Generator

The Word Report Generator makes post-test document generation a single mouse click away. Test report content is user configurable in a simple to use, configuration template. Selected test setup parameters, the test reference spectrum, status information, user defined text, and test graphical data can be included in the report, then edited, printed or sent via email as a word document.

Remote Interface

The Remote Interface options for the APEX Series Controllers offer the user a variety of versatile and flexible selections for remote control of the vibration test. Whether interfacing a thermal chamber for combined vibration and thermal testing, or a functional test system, the remote options provide three levels of sophistication as basic as starting and stopping a test (Start and Stop with simple contact closures) to virtually full command and status functionality (RS232 or Net Connect).

  • Remote Digital I/O Interface (Dedicated Signal Input/Output)
    • Start, Stop, Test ID Selection Input Commands
    • Contact Closure or TTL
    • Output Status - Test Finished, Test Aborted, Test Running
    • Opto-coupled Inputs and Outputs
  • RS232 Remote Interface (via external computer)
    • Serial Commands/Status
    • Commands:  Select Test, Start, Auto, Manual, Up/Down, Pause, Resume, Stop, Store Data, etc.
    • Status:  includes Test Type, Test Time, Auto/Manual, Test Finished, Test Aborted, Amplitude, and Frequency
    • Commands/Status Utilizing Ethernet Connection
    • Peer to Peer Communication
    • Remote Operation/Status via Internet Connection

TSDM (Test Setup Data Manager)

For Setup and Data Manager menu functionality, the TSDM option offers a separate application that can be licensed to any number of independent, isolated computer stations or multiple clients on the network. This software provides the same user interface and functionality as the main Apes Controller for test definition and review of saved data.  This is a convenient way to create tests and/or review test data without disrupting the Apex Host Computer.

Transducer Calibration

The transducer calibration software is used in conjunction with the TSC Signal Conditioner, 8B6 reference accelerometer, mounting bridge adapter, and appropriate shaker system to perform transducer calibrations (accelerometers and velocity transducers). A sinusoidal signal is utilized for precise back-to-back calibration. Standard features include:

  • Fast, precisely controlled comparison calibration of accelerometers and velocity transducers, 2 Hz to 10,000 Hz.
  • Sine sweep or stepped frequency modes
  • Accelerometer sensitivity range: 0.1 to 5,000 pc/g or mv/g
  • Velocity transducer sensitivity range: 0.2 to 5,000 mv-sec/in
  • Graph display of UUT sensitivity, % deviation and phase angle vs. freq.
  • Tabular listing of sensitivity and deviation at operator-selected frequencies.
  • Automatic Calibration Certificate printout with NIST traceable data.

For new applications, UD offers the complete Model 680C Transducer Calibration System
